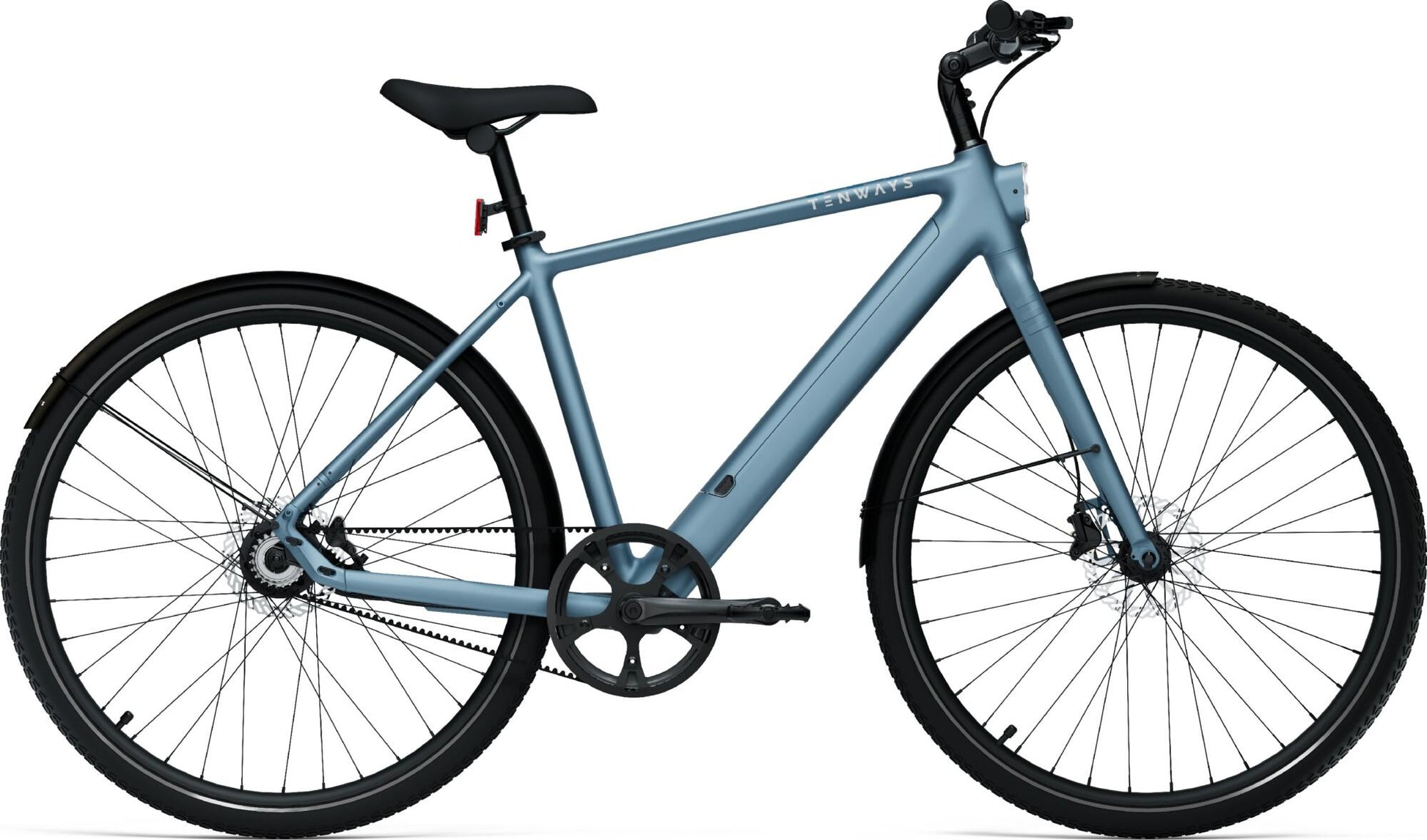

Tenways CGO600 Pro Sky Blue

ALLGEMEINE DATEN

SKU	081301500027
EAN	S / Sky Blue 8721055331384 XL / Sky Blue 8721055331414 M / Sky Blue 8721055331391 L / Sky Blue 8721055331407
Marke	Tenways
Artikelnummer	1101644
Verfügbare Größen	46 cm, 50 cm, 58 cm, 54 cm, 46cm
Verfügbare Farben	Sky Blue
Bezeichnung	360 Wh · 1-Gang · 28″
Einsatzbereich	Strasse
Einsatzzweck	Lifestyle
Zielgruppe	Damen, Herren
Farbe	Sky Blue
Rahmen-Hauptfarbe	schwarz
Montagezustand	Montage durch Verbraucher möglich

GEWICHT & ABMESSUNGEN

Gewicht	16,00
Maximales Systemgewicht	120

E-BIKE SYSTEM

Motor	Mivice M070 Hub Motor 36V 250W speed limitation 25km/h
Motor Marke	Sonstige
Motor Typ	bis 25 km/h
Motorposition	Mittelmotor
Akku	Lithium-ion Battery,36V,10AH,LG-21700 cell 5000MAH,20pcs cell,YS7781 100%, Sky Blue,A3, CANBUS
Akku Typ	Lithium-Ionen (Li-Ion)
Akku Kapazität	360
Akku Spannung V	36V
Akku Montage	Intube
Display	Star Union,SW102/T color display,for Mivice controller,700C,36V,speed limitation 25KM/H,fitting diameter 22.2
Ladegerät	MDA254,lithium battery,36V/42V,3A input voltage 100-240V,50/60Hz,DC2.1 charger plug,AC plug EU standard/C type,CE standard,packing size:218*138*55MM.
Bosch	Nicht ConnectModule-ready und nicht verbaut

ANTRIEB & SCHALTUNG

Schaltungstyp	Singlespeed
Gänge	1
Kurbelgarnitur	Prowheel, EB08（SOLID),170mm,matt black（LH/RH）,for 9/16"
Antriebsträger	Riemen
Kassette	Gates, CDX,CT11605AA,60T,BCD:130MM,fit for 5-arm,aluminum alloy(black)
Kette	Gates, CDN, 11M-125T-12CT

BREMSEN

Bremse	Tektro, HD-M275
Bremstyp	Hydraulische Scheibenbremse
Bremshebel	Tektro, HD-M275
Bremshebel Vorderrad	Tektro, HD-M275, with 750mm oil tube
Bremshebel Hinterrad	Tektro, HD-M275, with 1550mm oil tube
Bremsscheibe vorne	PRT006-160,cassette disc,high polish Shimano standard,disc outer diameter 160mm
Bremsscheibe hinten	Mivice Rotor, 2Cr13, 160mm, for M070 motor,w/ 6pcs of srcew T25_M5×9

RAHMEN & GABEL

Rahmen	TENWAYS CGO600PRO-2024 Frame,dwg:AT45T07-460,700C×460mm,YS7781 100%, Sky Blue,A3, Aluminium
Rahmenmaterial	Aluminium
Rahmenform	Diamant
Gabel	TENWAYS CGO600PRO-2024 Fork, YS7781 100%, Sky Blue,A3

GEOMETRIE

Körpergröße	150-160 cm
Körpergröße min	150
Körpergröße max	165
Sitzrohrlänge	460
Steuerrohrlänge	140
Oberrohrlänge	568
Sitzrohrwinkel Grad	74

LAUFRÄDER & REIFEN

Laufradgröße	28"/622mm
Felge vorne	LYE-026B,aluminum,double-deck,matt black,700C*1.5*14G*36H,height 18,inner width 20,outer width 27
Felge hinten	LYE-026B,aluminum,double-deck,matt black,700C*1.5*13G*36H,height 18,inner width 20,outer width 27
Reifen	CST, C-1880,rubber, 60TPI, black,EPS stab-proof,anti-abration, w/ reflective stripe,28*1.75*2.00
Speichen	Stainless steel 304H,14G,290mm,black,w/ 16mm& stainless steel 304H,14G,286mm,black,w/ 16mm& stainless steel 304H,13G,267mm,black,w/ 16mm
Nabe vorne	RX-25,two bearing disc brake type,aluminum,anode black,M9*14G*36H*100*108,shaft core 45#,w/ QR24 aluminum black quick release,inner width L:112MM

COCKPIT & LENKER

Lenker	MHB-6045BT,aluminum,matt black,straight handlebar,W:620MM*1.8T,ø31.8MM,6°,grip width≥185MM
Griffe	HL-G318,rubber,black,130MM,single pass,w/ aluminum anode black locking ring
Vorbau	CAS-JD6601N-8/0,aluminum,SABK matt black,intergrated,E:110mm,φ31.8mm for hadndlebar,φ28.6*35mm for fork,angle adjustable:-20° to +90°,w/o LOGO,original angle 110°, all accessories are black
Steuersatz	KL-B570HT,hidden toothless bearing head set,for head tube inside cable,cable hole 7.8*15MM,material:A6061,black,ø28.6*ø51.8*ø51.8*ø39.8,H:11.5MM

SATTEL & SATTELSTÜTZE

Sattel	Aifeit,62450-04#S04,black leather,w/o pattern,black protective cover,BED bridge+scale,w/o LOGO,271*148MM
Sattelstütze	RSP-AD001,aluminum,matt black,ø30.4*300mm

PEDALE

Pedale

FP-877ZP,engineering plastic composite material,black,9/16",w/ bead,BS/CPSC/DIN standard reflector,ISO-M,stick 'L' & 'R' label

ZUBEHÖR & AUSSTATTUNG

Schutzblech	NB70K-600PRO-013,front mudguard/rear mudguard D58,aluminum,matt black,wide 58MM,height 19mm
Ständer	YX-KS11C,aluminum,matt black,285-355MM adjustable,lock hole distance 40MM,w/ 2PCS black screws M6*20MM(w/ teflon paste,w/ outer diameter φ10 spacer),plastic black kickstand
Rücklicht	Sate-Lite,M4(all red,w/ brake sensor),mudgurad rear light,6~48V,black plastic shell,red light cover
Scheinwerfer	DHY05,front light,LED,12-48V,cable 100MM
