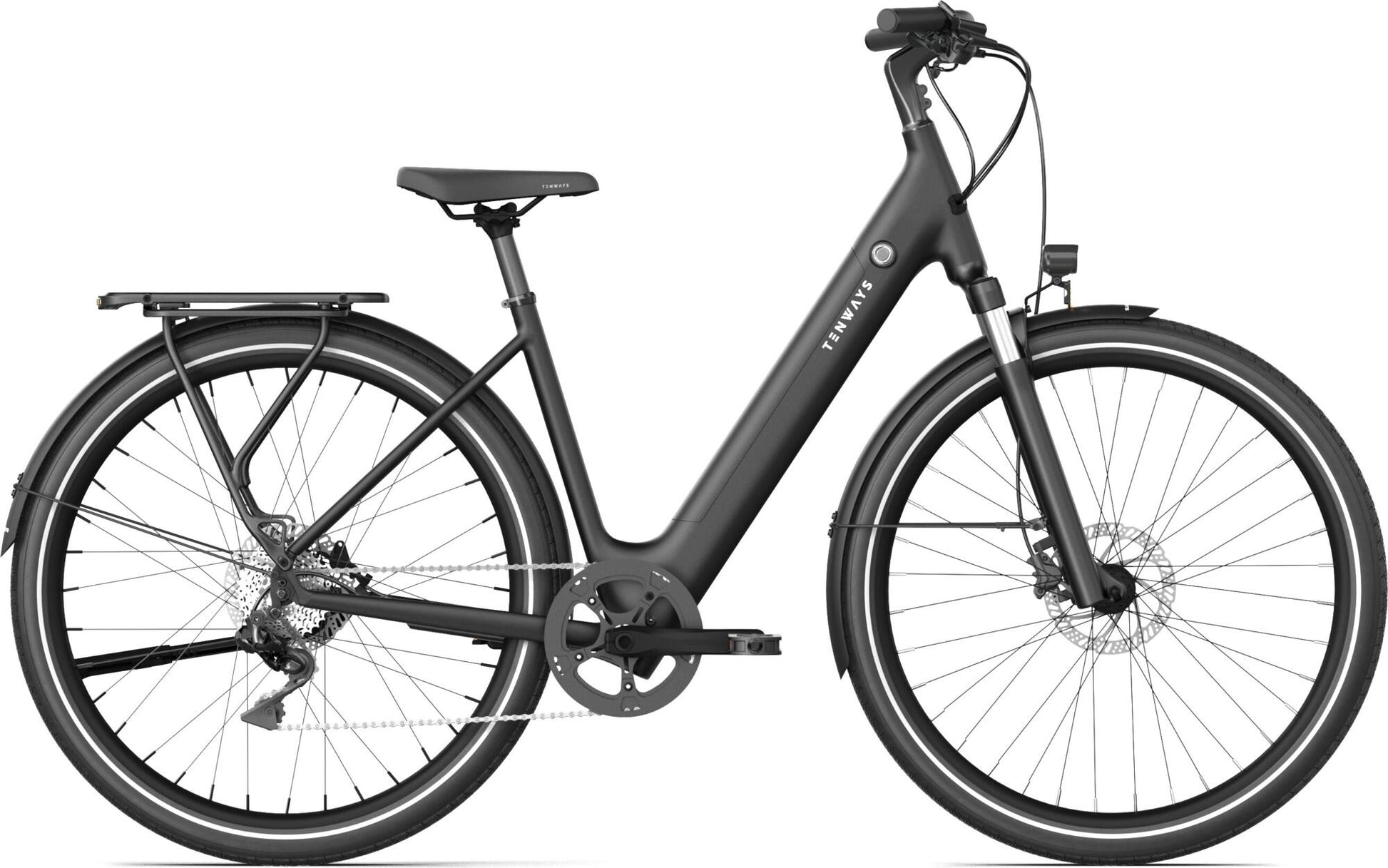

Tenways CGO800 Plus Midnight Black

ALLGEMEINE DATEN

SKU	1101643-11016432159
EAN	S / Midnight Black 8721055331469
Marke	Tenways
Artikelnummer	1101643
Verfügbare Größen	48 cm
Verfügbare Farben	Midnight Black, Sky Blue
Bezeichnung	475 Wh · 8-Gang · 28″
Einsatzbereich	Strasse
Einsatzzweck	Lifestyle
Zielgruppe	Damen, Herren
Farbe	Midnight Black
Rahmen-Hauptfarbe	schwarz
Montagezustand	Montage durch Verbraucher möglich

GEWICHT & ABMESSUNGEN

Gewicht	20,00
Maximales Systemgewicht	120

E-BIKE SYSTEM

Motor	TENWAYS Hub Motor C-9, brushless, 36V*250W, 45Nm
Motor Marke	Sonstige
Motor Typ	bis 25 km/h
Motorposition	Mittelmotor
Drehmoment des Motors Nm	45
Akku	Lithium-ion Battery 36V,13.2AH,EVE-18650 cell 3300MAH*40, limit 15A,CANBUS
Akku Typ	Lithium-Ionen (Li-Ion)
Akku Kapazität	475
Akku Spannung V	36V
Akku Montage	Intube
Display	Kingmeter, K5248+L5,LCD display
Ladegerät	ATNEN, LBC045100301,for lithium battery,backflow prevention,36V/42V,3A input voltage 100-240V,charging plug new EU standard EN50604 4 hole 3 pin (HG-Z411,red+black-,yellow 5V recognition),AC wire plug small EU standard two core/C type plug
Bosch	Nicht ConnectModule-ready und nicht verbaut

ANTRIEB & SCHALTUNG

Schaltung	Shimano, ARDR2000GS,REAR,DERAILLEUR,RD-R2000,CLARIS,GS,8-SPEED,DIRECT,ATTACHMENT,BULK
Schaltungstyp	Kettenschaltung
Gänge	8
Schalthebel	Shimano, ASLR2000RC,SHIFTING,LEVER,SL-R2000,CLARIS,FOR,FLAT,HANDLEBAR,ROAD,RIGHT,8-SPEED,RAPIDFIRE,PLUS,2400MM,INNER,OPTICAL,GEAR,DISPLAY,BULK
Kurbelgarnitur	NWA48A-S1-3,3/32*48T,FD05-48T (CNC) anode matt black(wide narrow teeth),S1-3 aluminum four-arm anode matt black,cover anode matt black, BCD104,CL52.5,fit with Bafang (SR,PA232.32.ST,148,001) sensor
Antriebsträger	Kette

BREMSEN

Bremse	Shimano, BL-MT200
Bremstyp	Hydraulische Scheibenbremse
Bremshebel	Shimano, BL-MT200
Bremshebel Vorderrad	Shimano, AMT200JRRXRX165,DISC,BRAKE,ASSEMBLED,SET/J-kit,,BL-MT200(R),,BR-MT200(R),,BLACK,,W/O,ADAPTER,,RESIN,PAD(W/O,FIN),,1650MM,HOSE(SM-BH59-SS,BLACK),BULK
Bremshebel Hinterrad	Shimano, AMT200JRRXRX165,DISC,BRAKE,ASSEMBLED,SET/J-kit,,BL-MT200(R),,BR-MT200(R),,BLACK,,W/O,ADAPTER,,RESIN,PAD(W/O,FIN),,1650MM,HOSE(SM-BH59-SS,BLACK),BULK
Bremsscheibe vorne	PRT006-160,cassette disc,high polish Shimano standard,disc outer diameter 160mm
Bremsscheibe hinten	PRT006-160,cassette disc,high polish Shimano standard,disc outer diameter 160mm

RAHMEN & GABEL

Rahmen	TENWAYS CGO800PLUS Frame,dwg:AT45T12-480,700C×480mm,YS728 80%,Midnight Black,A5, Aluminium
Rahmenmaterial	Aluminium
Rahmenform	Wave
Gabel	SR suntour Fork 700C C-GO 800S alloy,SF24-NEX-E25-DS-700C-63,black
Gabel Federweg	50

GEOMETRIE

Körpergröße	160-170 cm
Körpergröße min	155
Körpergröße max	190
Sitzrohrlänge	480
Steuerrohrlänge	190
Oberrohrlänge	600
Steuerrohrwinkel Grad	71
Sitzrohrwinkel Grad	73

LAUFRÄDER & REIFEN

Laufradgröße	28"/622mm
Felge vorne	LYE-026B,aluminum,double-deck,matt black,700C*1.5*14G*36H,height 18,inner width 20,outer width 27,A/V valve (w/o logo)
Felge hinten	LYE-026B,aluminum,double-deck,matt black,700C*1.5*13G*36H,height 18,inner width 20,outer width 27
Reifen	CST, C1635,rubber,60TPI,black,28"*2.0"(700*48C),3mm orange stab-proof,w/ reflective stripe
Speichen	Front: Stainless steel 304H,14G,290mm,black& stainless steel 304H,14G,286mm,black. Rear: stainless steel 304H,13G,261mm,black& stainless steel 304H,13G,260mm,black
Nabe vorne	RX-25,2 bearing disc rotor type,aluminum,anode black,M9*14G*36H*100*108,shaft core 45#,w/ QR24 aluminum black quick release,L:115MM

COCKPIT & LENKER

Lenker	CHB-A6353 and add 2 cable threading holes as CBH-C-G800-002C,aluminum,matt black,riser handlebar,W:635MM*2.2T,fit with stem φ31.8MM,H:41MM,37°,grip distance≥185MM
Griffe	G220,black PU,130MM,bi-pass,w/ black HL-05 plug (ø19.9),w/ aluminum anode black locking ring
Steuersatz	FP-H869T,hidden toothless head set,aluminum,matt black,Φ28.6*Φ41.8*52*Φ39.8,H:11.2mm,w/o locker

SATTEL & SATTELSTÜTZE

Sattel	SR, A037HR0028014,black 8014#/vacuum foaming/ bridge BED print 065# scale mark,no clip/no edge
Sattelklemme	Magix,523Q,aluminum,matt black,fit with ø35,w/ aluminum matt black quick release/copper washer
Sattelstütze	RSP-AD001,aluminum,matt black,ø30.4*350mm,laser carving safety line and scale,w/ black clip,black screws, ISO-M standard

PEDALE

Pedale

FP-893ZU,plastic,black,sand paper on surface,9/16",hexahedral shaft,sleeve plain bearing,w/ reflector

ZUBEHÖR & AUSSTATTUNG

Gepäckträger	Rear carrier,aluminum,matt black
Schutzblech	Mudguard,D58,aluminum,2.0T matt black,wide 58mm,height 19mm,w/ black stainless steel stays(L=??MM),w/ black adjuster and screw accessory,w/ CP-001 connecting clip,front fixed hanger,rear fixed hole, cable hole on left of rear mudguard
Ständer	YX-KS11D,aluminum,matt black,285-355MM adjustable,lock hole distance 40MM,w/ 2PCS black screws M6*20MM(w/ teflon paste,w/ outer diameter φ10 spacer),plastic black kickstand
Scheinwerfer	DH002 front light(w/ reflector),black,LED,6-48V,bracket DZ01,cable w/ end 50MM(2 core male end M2.6),cable dwg: EB,S1T0,032,CE/ECE/ROHS standard
